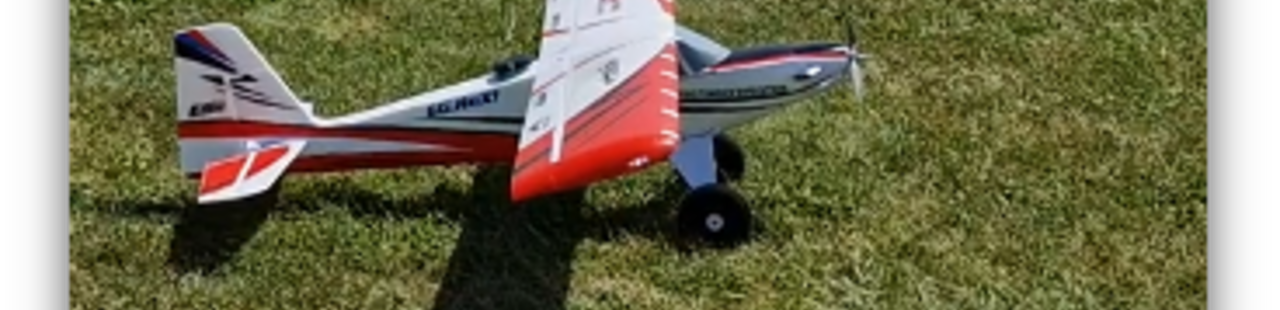

Timber
Technische Daten
|
Frametype |
TIMBER |
|
Flight-Controller Hardware |
MATEK FlightController |
|
Flight-Controller Software |
Ardupilot‘s „ArduPlane“ |
|
Companion -PC |
Raspberry Pi 4, 8GB RAM |
|
BEC |
- |
|
Battery |
1x4S LiPo 5000 mAh |
|
RC-System |
Radiomaster TX16S + FrSky RX8R Receiver |
|
Telemetry-Link |
RF Design 868 MHz Module or Wifi via Raspberry Pi |
|
5G-Modem |
Quectel RM500Q-GL |
|
5G-Antenna |
ANTARES SZK-C-0L05 |
|
Sensors |
GNSS Antenne, Barometer, IMU, Voltage & Current-Measurement |
|
Accessories |
Camera |
|
Size (LxBxH) |
|
|
Operating Mass |
|
|
Est. Flight Time |
20 min |
